In addition to asking how to change a home air filter, many homeowners wonder how to properly insert a furnace air filter.

Although on the surface the answer might seem idiot-proof – just take the old one out and put the new one in – it’s sufficiently confusing to address here.

A Right Way and a Wrong Way to Insert Furnace Filters

You see, there is a definite wrong way to insert a home air filter that can hamper your furnace’s efficiency and cost you money. Running your furnace with a clogged filter can have a similarly negative effect.

Clean air filters matter. It’s important to routinely monitor them so that, when they become clogged with all the dirt, dust and debris that they filter out of the air you breathe, you can respond with a clean air filter for better indoor air quality and improved energy efficiency. When the air filter is clogged, your furnace will strain harder to remove these contaminants, increasing your utility bills and shortening your HVAC equipment’s life. Just like a car’s air filter, a dirty furnace air filter starves the engine in your furnace for air.

In fact, a government study indicates that replacing a dirty, clogged air filter with a clean one can lower your central air conditioner or furnace energy consumption between 5 and 15 percent.

By the way, if you aren’t sure exactly when to change your air filter, invest in an electronic air filter monitor. It will eliminate all guesswork on your part.

To Properly Insert a Furnace Air Filter, Look for the Arrow!

Ok, so you have realized that now is the time to change your air filter. You have the new one in front of you and the old one still in the furnace. Now what?

  1. Remove the old air filter from your furnace.

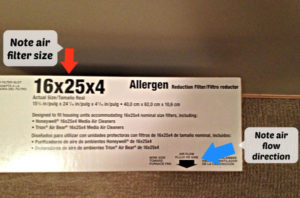

  2. On your new air filter, find the arrow that indicates the proper air flow direction. This tends to confuse everyone more than anything else. That arrow must always face toward the furnace and away from the return duct that carries the air in need of heating or cooling. Forced air furnaces recirculate air throughout a home: pushing air (cool or heated) in and pulling spent air back in for another cycle.
    Tip: It’s a good idea to draw the airflow direction arrow with a permanent marker on the actual furnace housing or ductwork. Ideally, you’d indicate the airflow direction and air filter size (16x25x4  Airflow→)
  3. Slide the new air filter in with the arrow pointing toward the furnace, and you are done.

Replacing your air filter is not difficult as long as you understand that air flows from your ducts, through the filter, and into the furnace. The arrow on the air filter always should point toward the furnace.
